Get Started/ 6 steps · Schematic to Harness

Build your first harness drawing

Follow six short steps to go from a blank sheet to a manufacturing-ready drawing like the one below.

PREVIEW

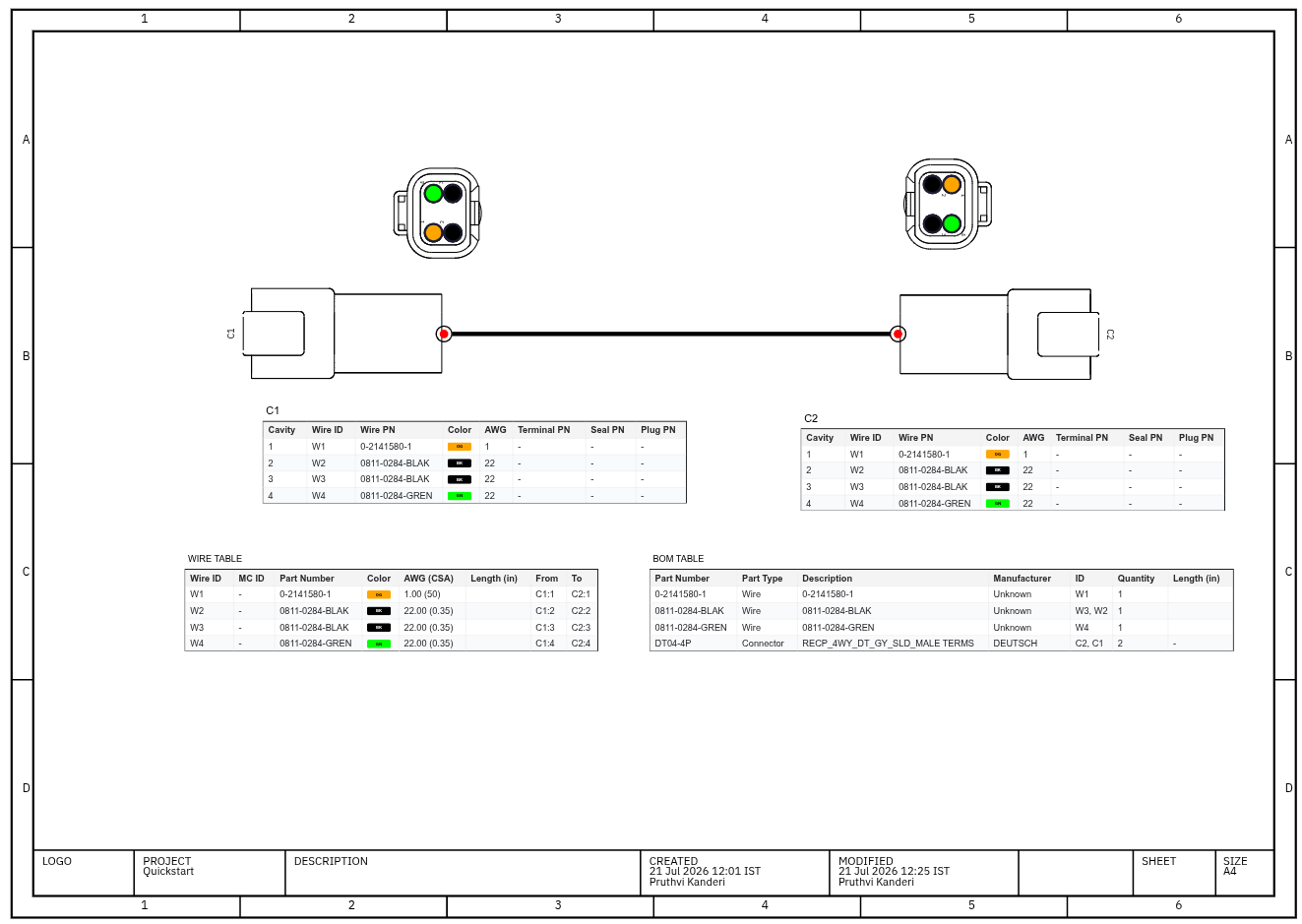

Finished drawing: two DT04-4P connectors joined by a wired cable, each with a cavity table, plus a wire table and BOM table on an A4 sheet.
What you'll end up with — connectors, cavity tables, a wire table and a BOM, ready to export as a single PDF.

What you'll do

  1. Design & wire a schematic

    Place connectors, route wires between them, and assign each wire a real part number.

  2. Lay out the harness

    Switch to Harness, bundle the connectors together, and add cavity and manufacturing tables.

  3. Export

    Produce a single PDF of the whole drawing — ready to share.
